Project Summary
Develop critical imported die casting spare parts through Reverse Engineering.
Projects Completed
Business Benefits
Project 1: Nozzle Holder
Project 2: Crucible Cover
Nozzle Holder
Reverse Engineering Nozzle Holder for Hot Chamber die casting machine
Nozzle Holder
Raw Material : EN 24
Hot chamber die casting machine

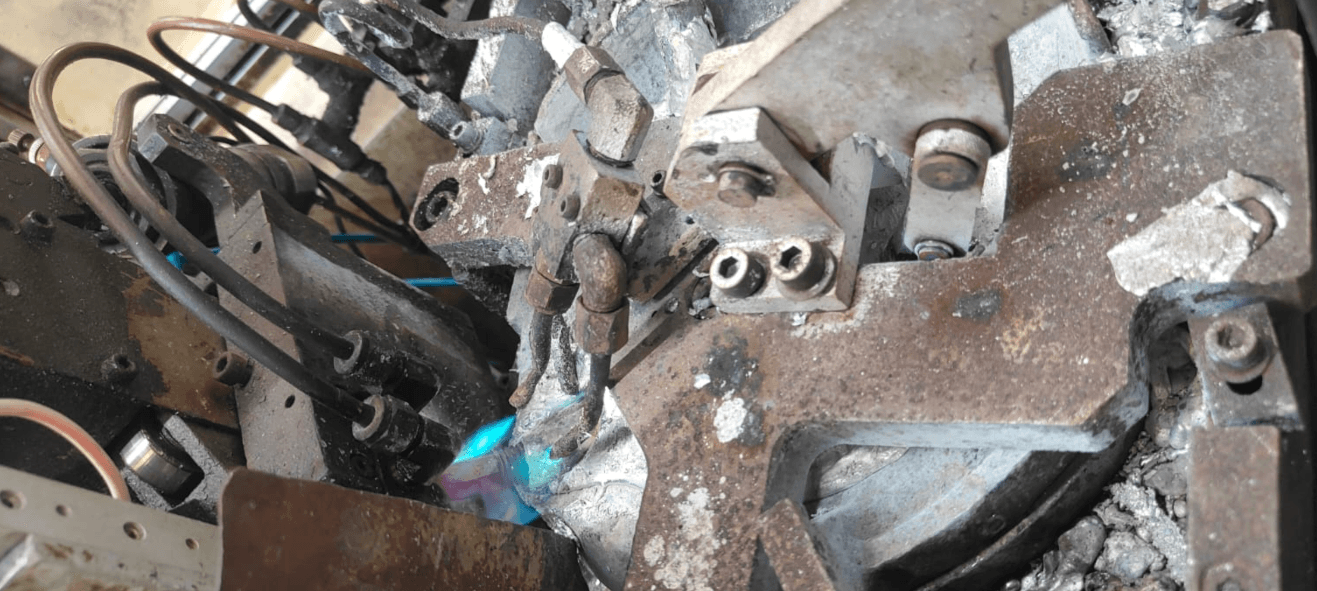

Nozzle Holder Assembled location
Process Flow

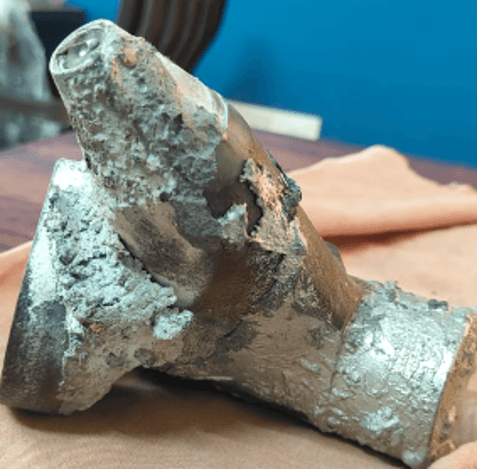

Master sample received from customer
3D scan data
CAD model development

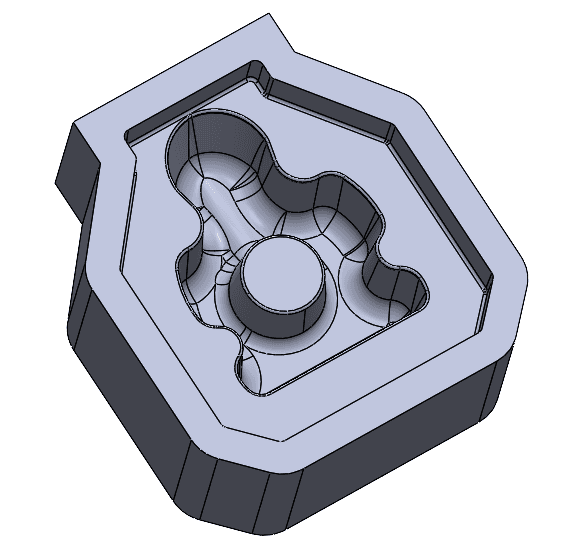

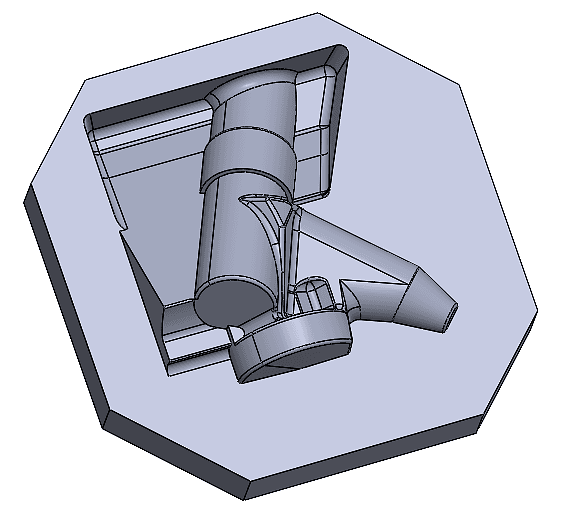

Pattern design development (1/2)

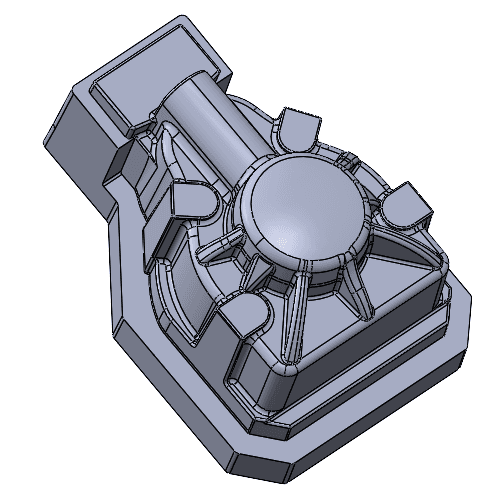

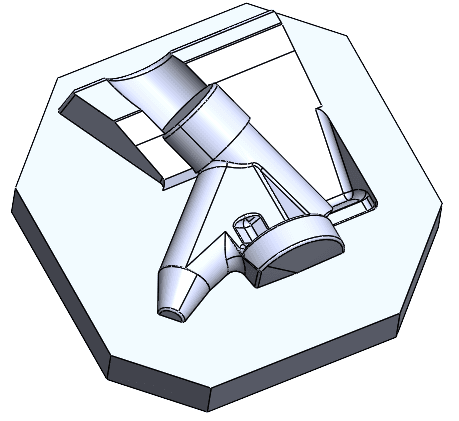

Pattern design development (2/2)
Pattern & Mold development

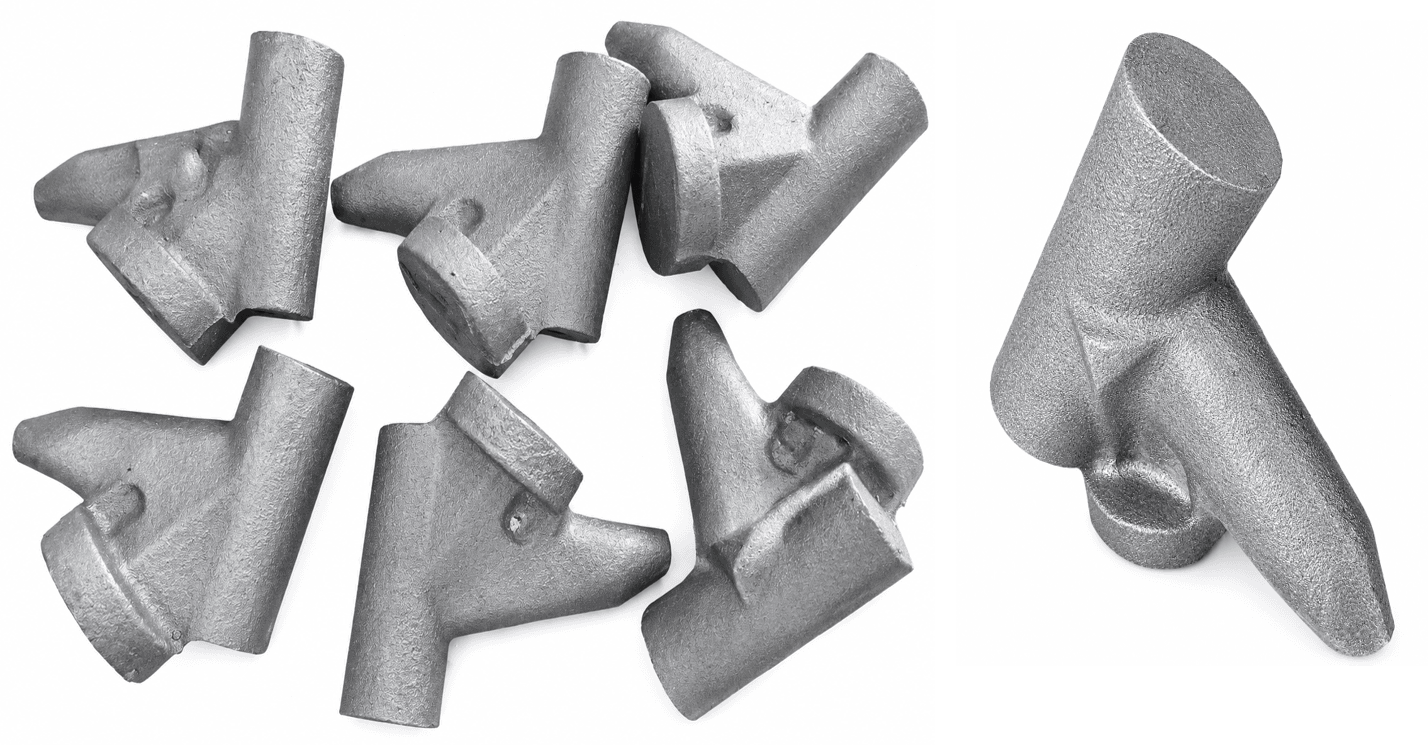

Proto casting

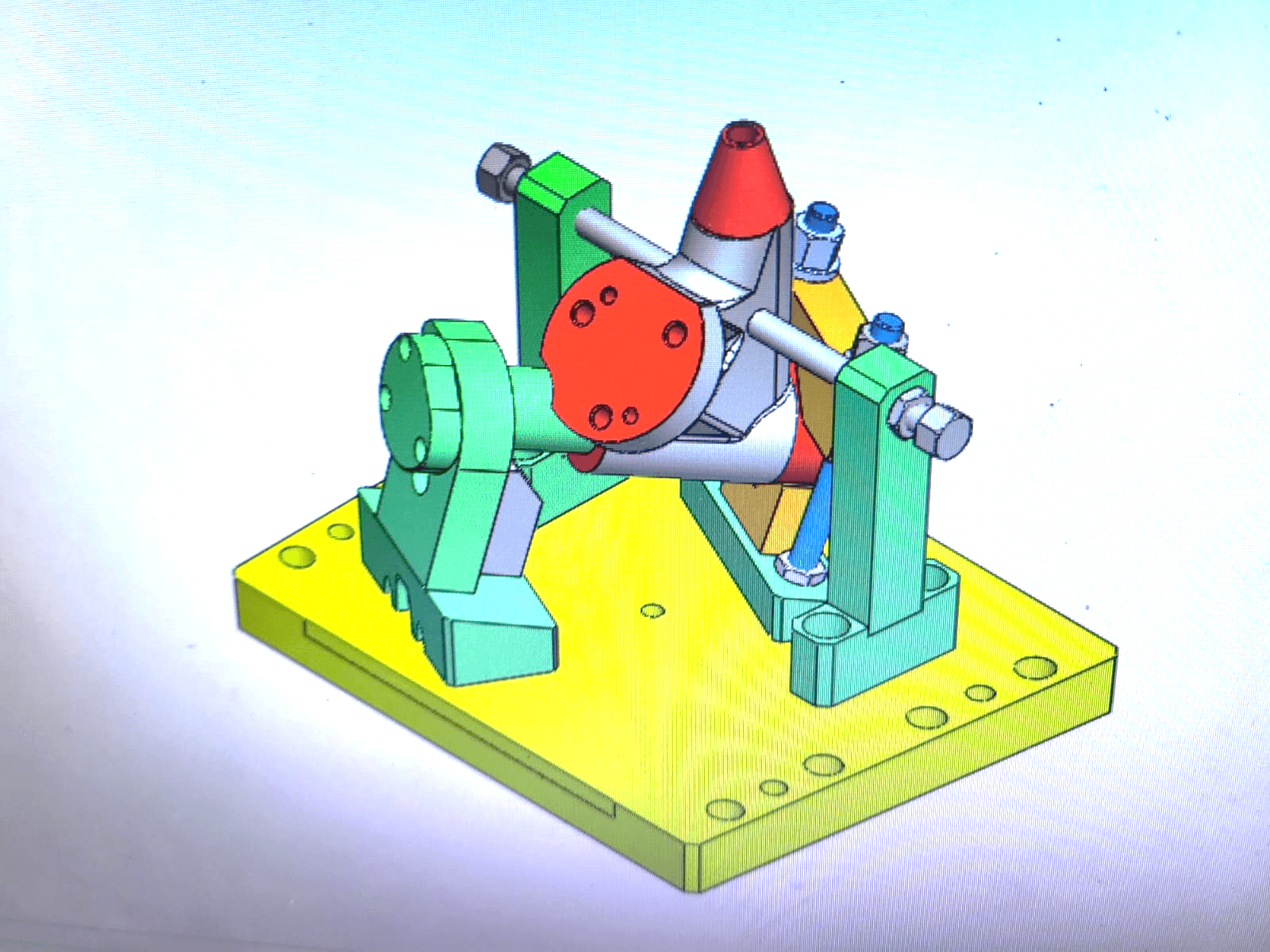

Machining fixture design (1/2)
Machining fixture design (2/2)

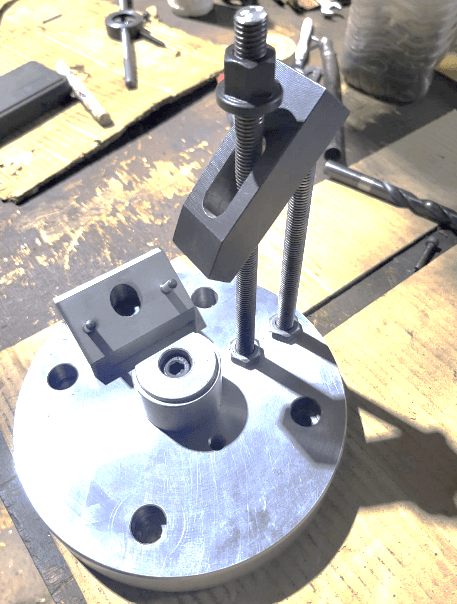

Machining fixture development (1/2)
Machining fixture development (2/2)
Machining development

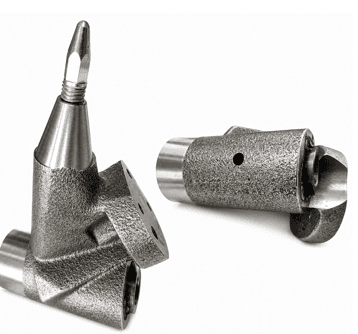

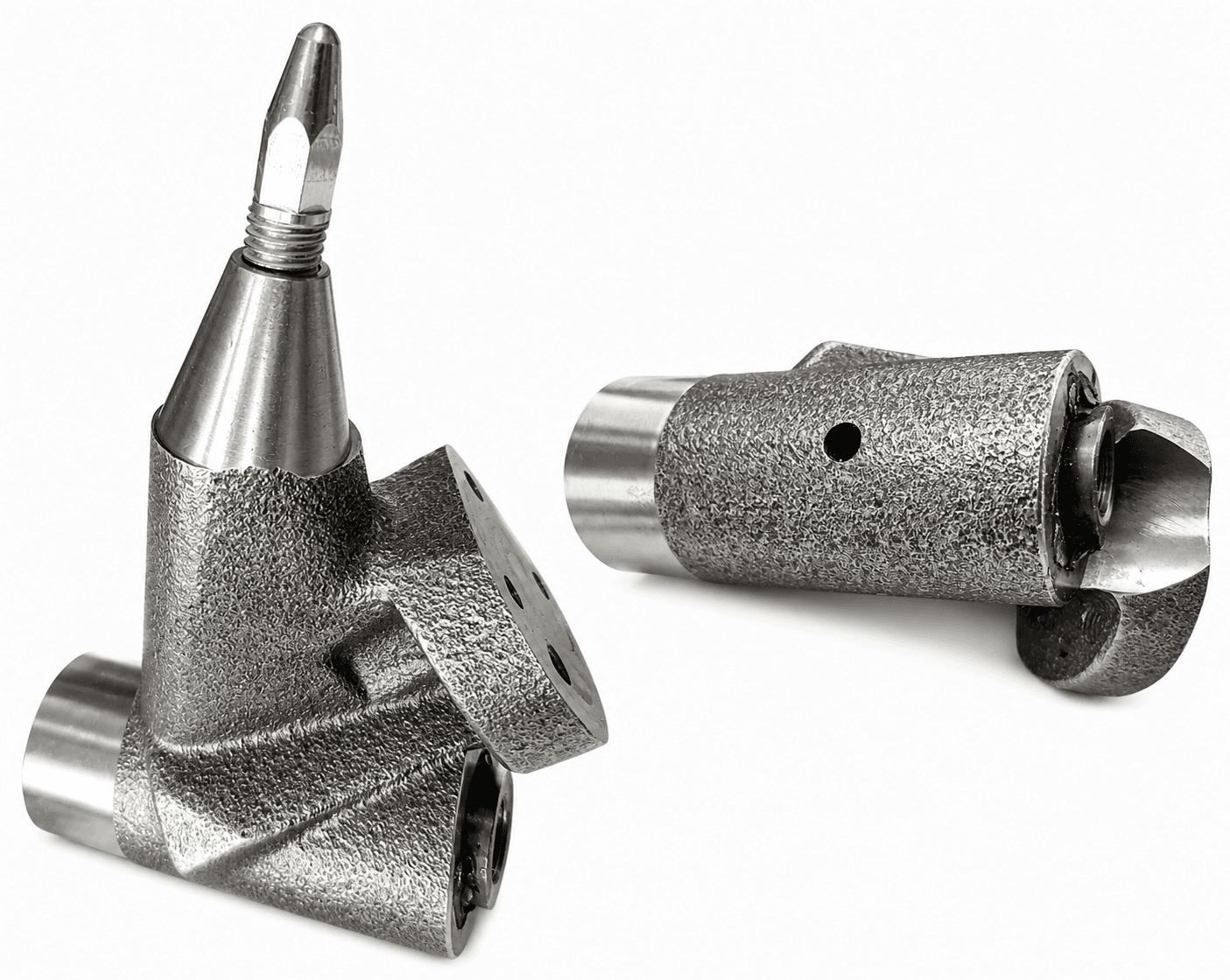

Final part with child part assembly

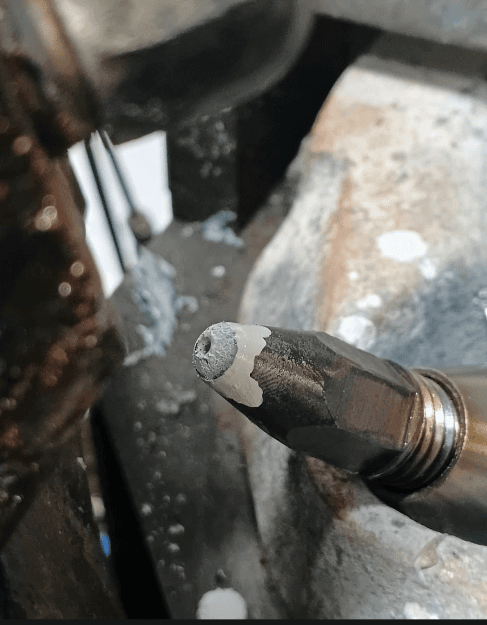

Assembly & validation

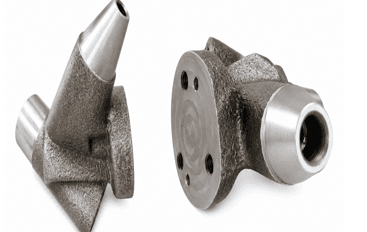

Final Approval & production
Machined casting images with child part Assembly

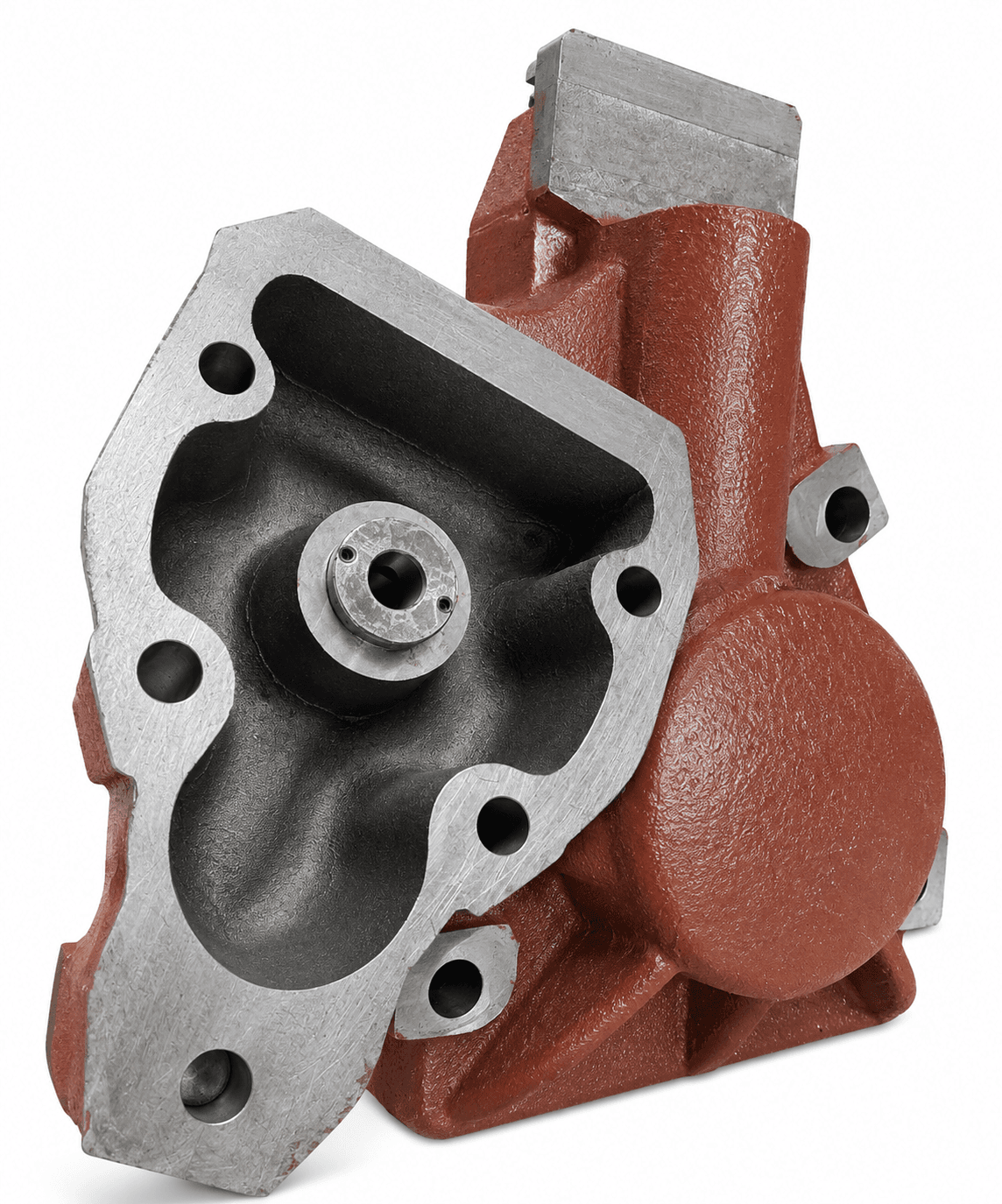

Crucible Cover
Reverse Engineering Crucible for Hot Chamber die casting machine

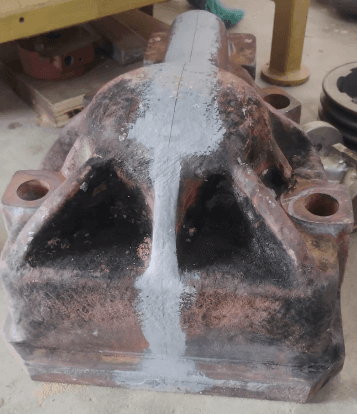

Crucible
Raw Material : SG iron

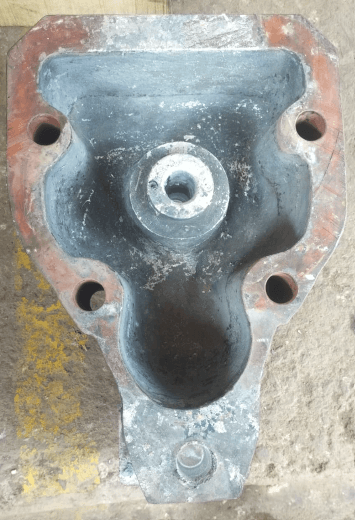

Crucible Detail
Hot chamber die casting machine

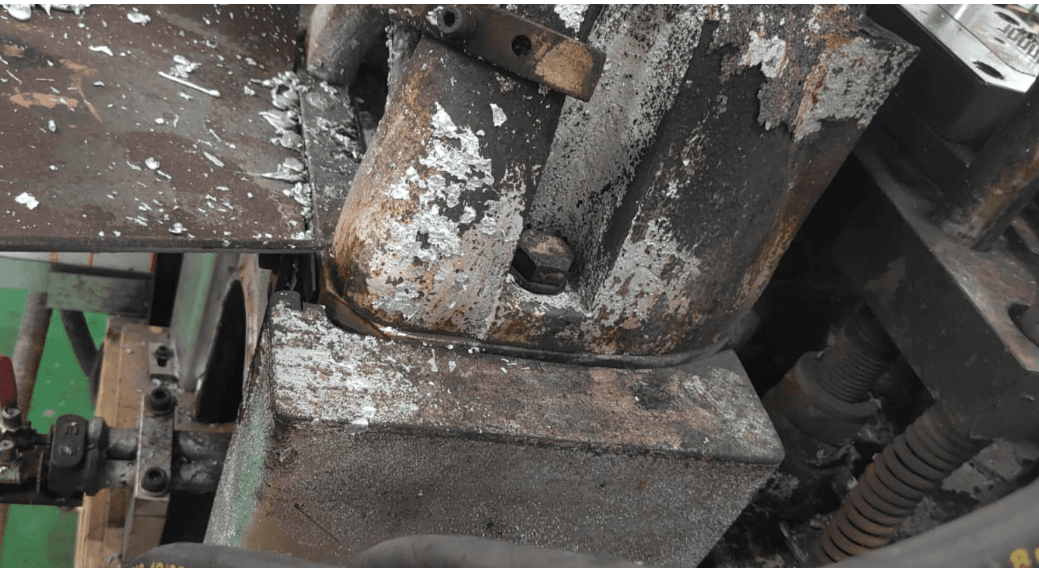

Crucible Assembled location
Process Flow
Master sample received from customer
3D scan data
CAD model development
Pattern design development (1/2)
Pattern design development (2/2)
Pattern & Mold development
Proto Casting

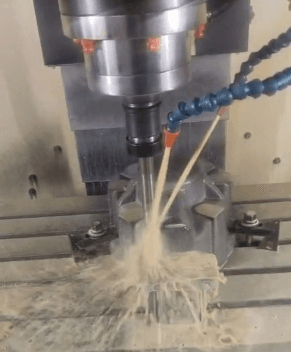

Machining development
Final part with child part assembly

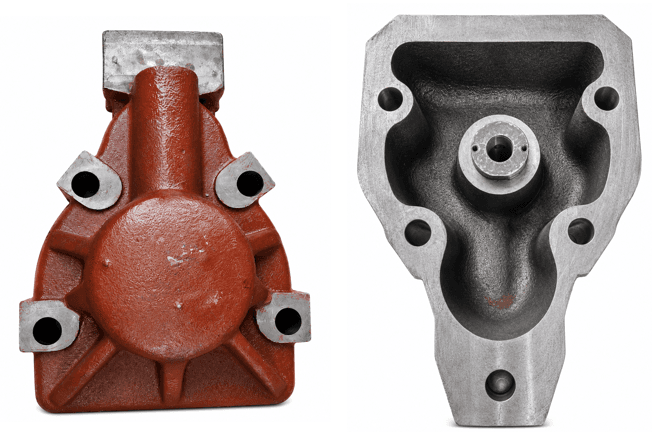

Final Approval & production
Machined casting images with child part Assembly
Project Achievements
| Parameter | Before | After |
|---|---|---|
| Procurement Source | Korea | India |
| Lead Time | 10 - 12 Weeks | 2 - 4 Weeks |
| Purchase Cost | High | Reduced |
| Availability | Limited | Immediate |
| Inventory | High | Low |
| Machine Downtime | Frequent | Minimized |
| Technical Ownership | Supplier | Bridge Cast Tech |
COST SAVINGS | FASTER DELIVERY | IMPROVED AVAILABILITY | HIGHER RELIABILITY
